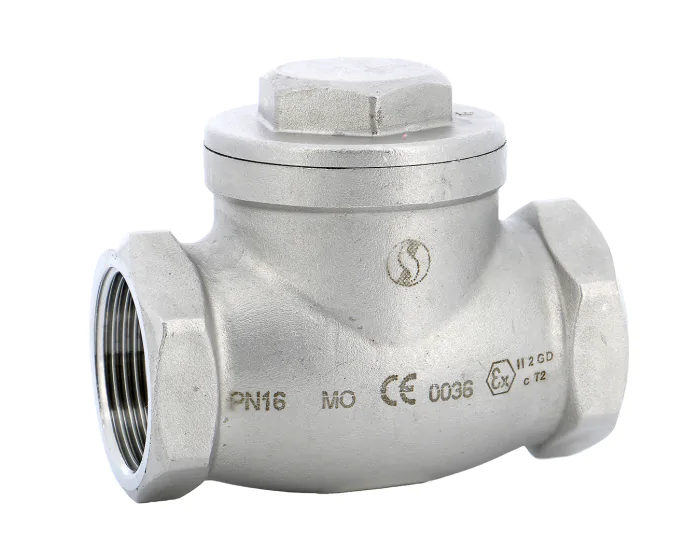

The 320 series swing check valve is made of stainless steel, with female BSP cylindrical threaded connection, metal to metal seal, for the chemical, pharmaceutical, petrochemical and hydraulic industries.
| Specification | Value |
|---|---|
| DN inches NPS | 1/4'' |
| Option certificate 3.1 | Yes |
| Mounting direction | Horizontal or vertical upward flow |
| CE risk category | II Module A2 |
| Thread standard | ISO 7-1 Rp |
| Tightness test standard | API 598. table 6 |
| Closure member material | Stainless steel ASTM A351 CF8M |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2GD c T2 |
| ATEX compatible | Yes |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 63.0 |
| Sealing | Metal / Metal |
| Fluid | Acids |
| Kv (m³/h) | 2.6 |
| Body material | Stainless steel CF8M (1.4408) |
| PS (bar) | 16 |
| Connections | BSP FF |
| Seats | Stainless steel ASTM A351 CF8M |
| TS max (°C) | 180 |
| TS min (°C) | -25 |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| CE | Yes |
| Obturator type | Plate |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Stainless steel CF8M (1.4408) Plate 1/4'' | 320002 | S1010942 |
€11.37
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Plate 3/8'' | 320003 | S1010943 |
€11.37
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Plate 1/2'' | 320004 | S1010944 |
€11.37
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Plate 3/4'' | 320005 | S1010945 |
€16.41
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Plate 1'' | 320006 | S1010946 |
€23.44
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Plate 1''1/4 | 320007 | S1010947 |
€33.81
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Plate 1''1/2 | 320008 | S1010948 |
€45.76
(excl. btw)
|
add to cart |
| BSP FF Stainless steel CF8M (1.4408) Plate 2'' | 320009 | S1010949 |
€63.64
(excl. btw)
|
add to cart |
